Description

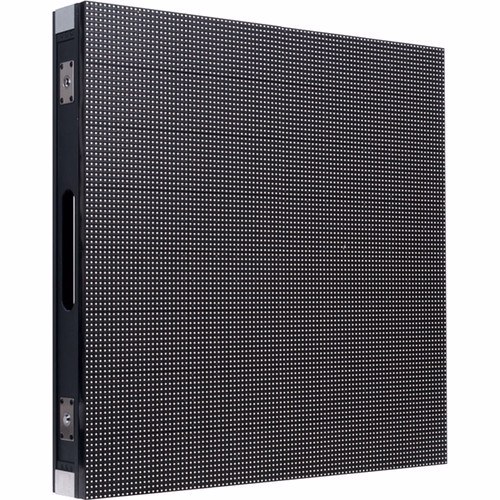

EPT6IP Outdoor Pro Touring LED Panel from Elation Professional offers viewing angles of 120° and brightness rating of 5000 cd/m2. It uses the dot correction technology for providing color uniformity and brightness. The panel’s die-cast aluminum frame and four-piece modular design allows for quick installation and service. It conforms to IP65 compliant standards for use in harsh environments. In addition, the LED panel offers a pixel pitch of 6.67 mm and is suitable for outdoor Pro-Touring portable installations.
Pixel Pitch: 6.67mm
Physical Density: 22,500(dots/m2)
LED Configuration: 1R1G1B
LED Type: SMD Chip
Module Size: 320x320mm
Module resolution: 48×48
Drive Model: MBI5151
Scanning Mode: 1/6
Horizontal and Vertical View angle: 120°
Brightness: 5000cd/m2
Gray Scale: 14bit
Refresh rate: 1920Hz
Cabinet Resolution: 96×96
Cabinet Max Power Consumption: 252W
Cabinet Average Power Consumption: 101W
Cabinet Size: 640x640mm
Cabinet Weight: 38.6 lbs. (17.5kg)
Cabinet Material: Aluminum
Input Voltage: AC110V220V+/-10%, 50/60Hz
Life Span: 100,000 Hour
Protection Level: IP65
Calibration Module
